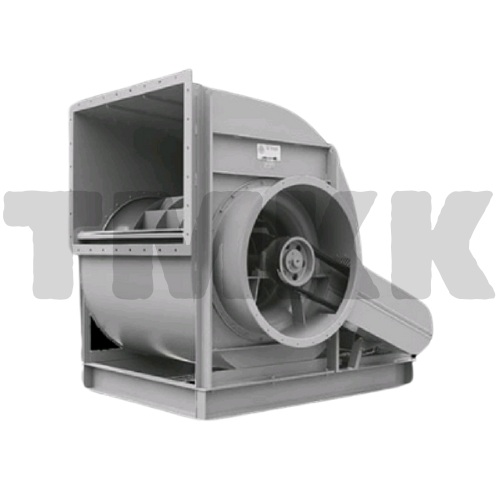

• Air Flow: 100 – 200,000 CMH
• Motor Power: Up to 295 kW
• Static Pressure: 20 – 150 mm
• RPM Range: 300 – 1450 RPM
• Material: MS & SS

Applications: Industrial air movement with pressures up to 150 mmWC, ventilation systems, and general industrial applications.

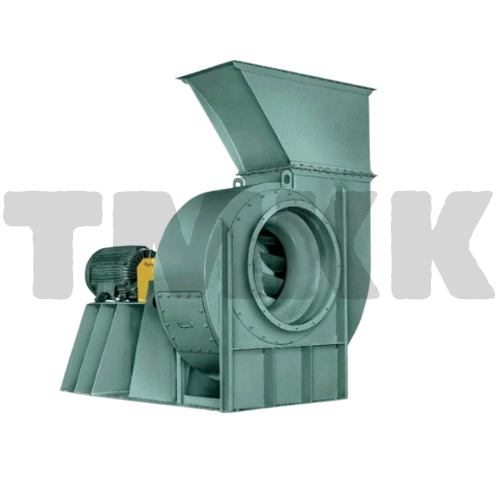

• Air Flow: 300 – 180,000 CMH
• Motor Power: Up to 200 kW
• Static Pressure: 150 – 600 mm
• RPM Range: 700 – 3000 RPM
• Material: MS & SS

Applications: Industrial ventilation systems, pneumatic conveying, dust collection, fume extraction, drying systems, combustion air supply.

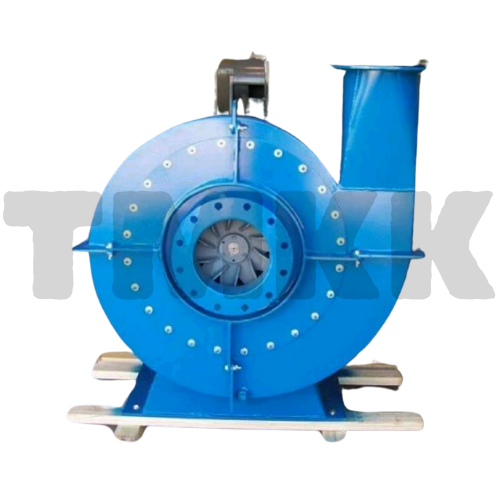

• Air Flow: 100 – 200,000 CMH
• Static Pressure: 600 – 1500 mm
• RPM Range: 700 – 3000 RPM
• Motor Power: Up to 250 kW
• Material: MS & SS

Applications: Pneumatic conveying systems, combustion air supply, industrial furnace air injection, boiler operations, central vacuum cleaning systems.

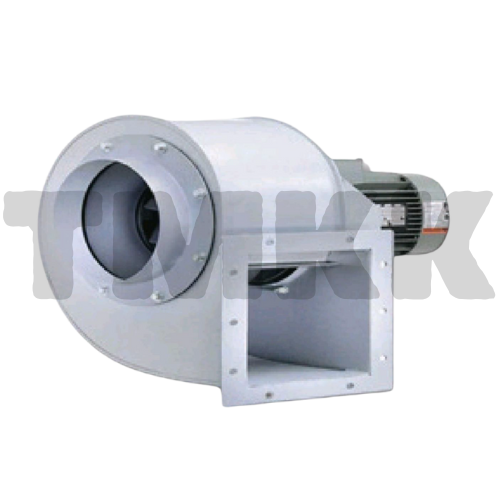

• Volumetric Flow: Up to 150,000 m³/hr
• Max Pressure: 150 mmWC
• Max Temperature: 300°C
• Drive Type: Belt or Direct

Applications: Hot air circulation, autoclave vessels, dust collectors, HVAC systems, high-temperature operations, industrial ventilation.

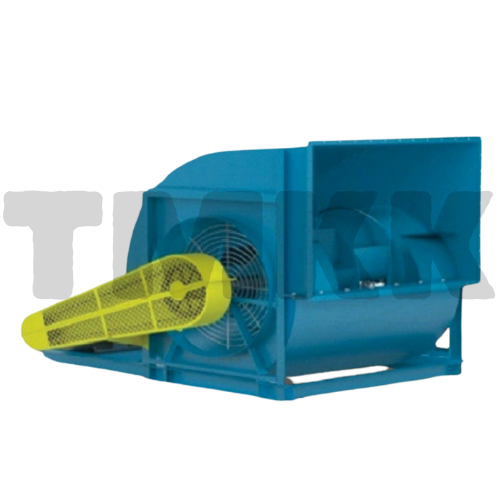

• Drive Type: V-belt & Coupling
• Temperature: Up to 130°F
• Motor Positions: W, X, Y, Z
• Application: Clean Air Systems

Features: Wheel mounted between bearings, supported by fan housing, both bearings located in airstream for clean air applications.

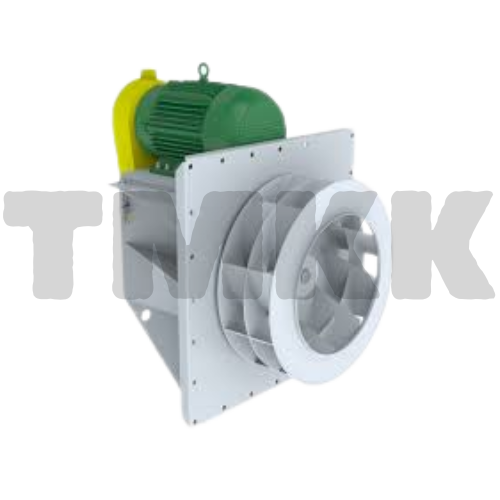

• Volumetric Flow: Up to 80,000 m³/hr
• Max Pressure: 120 mmWC
• Max Temperature: 250°C
• Drive Type: Direct or Coupled

Applications: HVAC systems, process cooling, industrial ventilation, confined space air movement, OEM integrations.

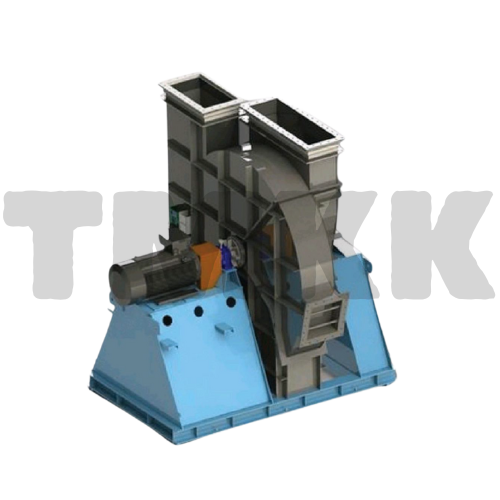

• Volumetric Flow: As per design specification
• Max Pressure: Custom-configured
• Max Temperature: Up to 450°C
• Drive Type: Belt, Direct, or Coupled

Applications: Power plants, cement factories, chemical processing units, HVAC systems, and industries requiring unique airflow solutions.
